ColorNoise

This is a simple spin on the standard Max noise procedural, (no pun intended). It rotates the values for the R, G and B components of the noise function so that the result is chromatic. In addition the color can be blended with a base color or map, and there are various flavors of the base noise function.

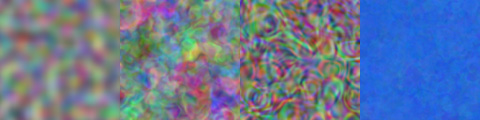

Samples

UI

Noise Type: Provides four options on the base noise function that is used.

Regular: Generates plain noise. Basically the same as fractal noise with the Levels setting at 1. When the noise type is set to Regular, the Levels spinner is inactive (because Regular is not a fractal function).

Fractal: Generates noise using a fractal algorithm. The Levels option sets the number of iterations for the fractal noise.

Turbulance1: Generates fractal noise with an absolute value function applied to it to make fault lines.

Turbulance2: Similar to Turbulance1, this provides a slightly different flavor of turbulence. For those that really care this version is identical to the one used in Max's Noise map. The first version is found in the texture and modeling book I've mentioned previously.

Use Regular Noise For Base Checkbox: This controls what type of noise is used for the Distortion parameter. If the checkbox is checked the distortion is based on standard noise. If the checkbox is left unchecked the distortion uses the same type of noise that is currently selected. If Regular noise is selected this checkbox has no effect. In addition if Distortion is set to zero this parameter will not produce a change of appearance.

Pinch: When enabled, the noise takes on a pinched appearance. This is only apparent when the distortion value is greater than zero.

Phase: Controls the speed of the animation of the noise function.

Levels: Determines how many Iterations are used for the Fractal and Turbulence noise functions. While it is possible to animate the number of fractal levels this will cause the procedural to jump.

Blend%: Mixes the random hue of the noise with a percentage of the Base Color. This is used to tint the map globally.

Fractal Increment: When this is set to 1, the base noise function is relatively smooth; as it goes toward 0, the function approaches white noise.

Lacunarity: Is the "gap" between successive frequencies used to construct the fractal and turbulent versions of the noise.

Base Color swatch: Display the Color Selector for the basecolor.

Map buttons: Assigns a map to the base color.

Check box: When on, enables the associated map. When off, disables the associated map (the color reverts to the color swatch).

Size: Sets the scale of the noise function.

Min: Sets the minimum scale of the noise function when a map is used.

Max: Sets the maximum scale of the noise function when a map is used.

Map buttons: Assigns a map to the size value.

Check box: When on, enables the associated map. When off, disables the associated map (the value reverts to the size spinner).

Distortion: This provides an underlying distortion to the noise. The Noise type selected influences the look of the distortion unless the Use Regular Noise For Base checkbox is checked. The greater the value the more convoluted the distortion will appear. At high values this can lead to AA issues so it is best to either super sample the map or use a renderer that allows the scene to be super sampled. ( Brazil works great for this)

Min: Sets the minimum distortion of the noise function when a map is used.

Max: Sets the maximum distortion of the noise function when a map is used.

Map buttons: Assigns a map to the distortion value .

Check box: When on, enables the associated map. When off, disables the associated map (the value reverts to the distortion spinner).

Usage Notes

As this map is a very close relative of Max's Noise map it should be fairly well behaved. It is possible to get it to alias if the size is very small or the distortion is really cranked up. As with all the maps if you find any errant behavior please let me know.

This map also has the output rollout added to it. Please look at the Max help file for explanations on what these parameters do. These controls can radically affect the look of the map and can easily replace the clamping controls found in the standard Noise map.

Download

Please do not redistribute these files. Changes/bug fixes may be made to the plugin and it makes it much easier to guarantee you have the latest version if it is grabbed it from this site. Thanks

ColorNoise1.0 for Max4.0/5.0

History

Version 1.0 released on 03/01/03

This map was started on Thur 11/22/01
